Burst Decay Sonogram, 40dB Dynamic Range

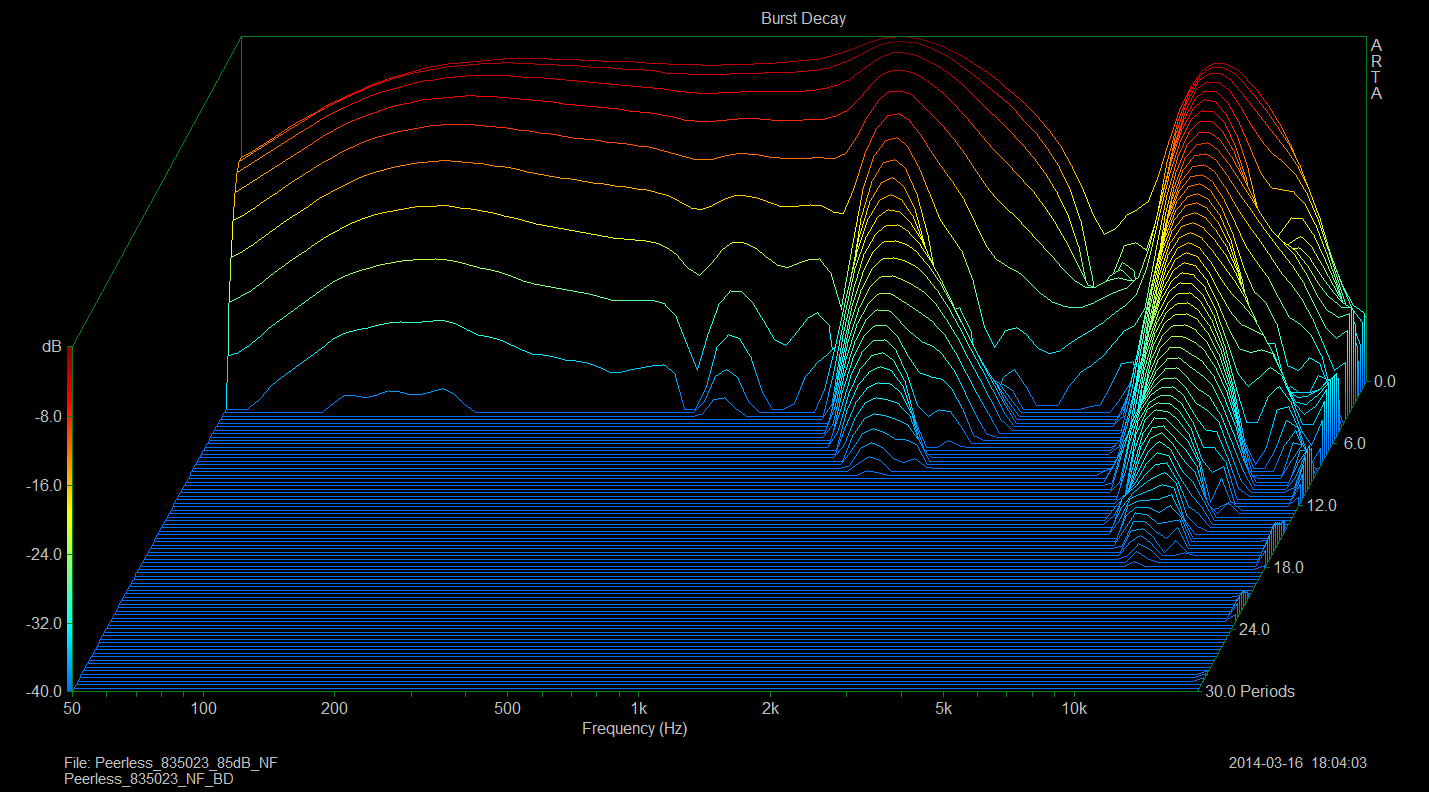

Burst Decay Waterfall, 40dB Dynamic Range

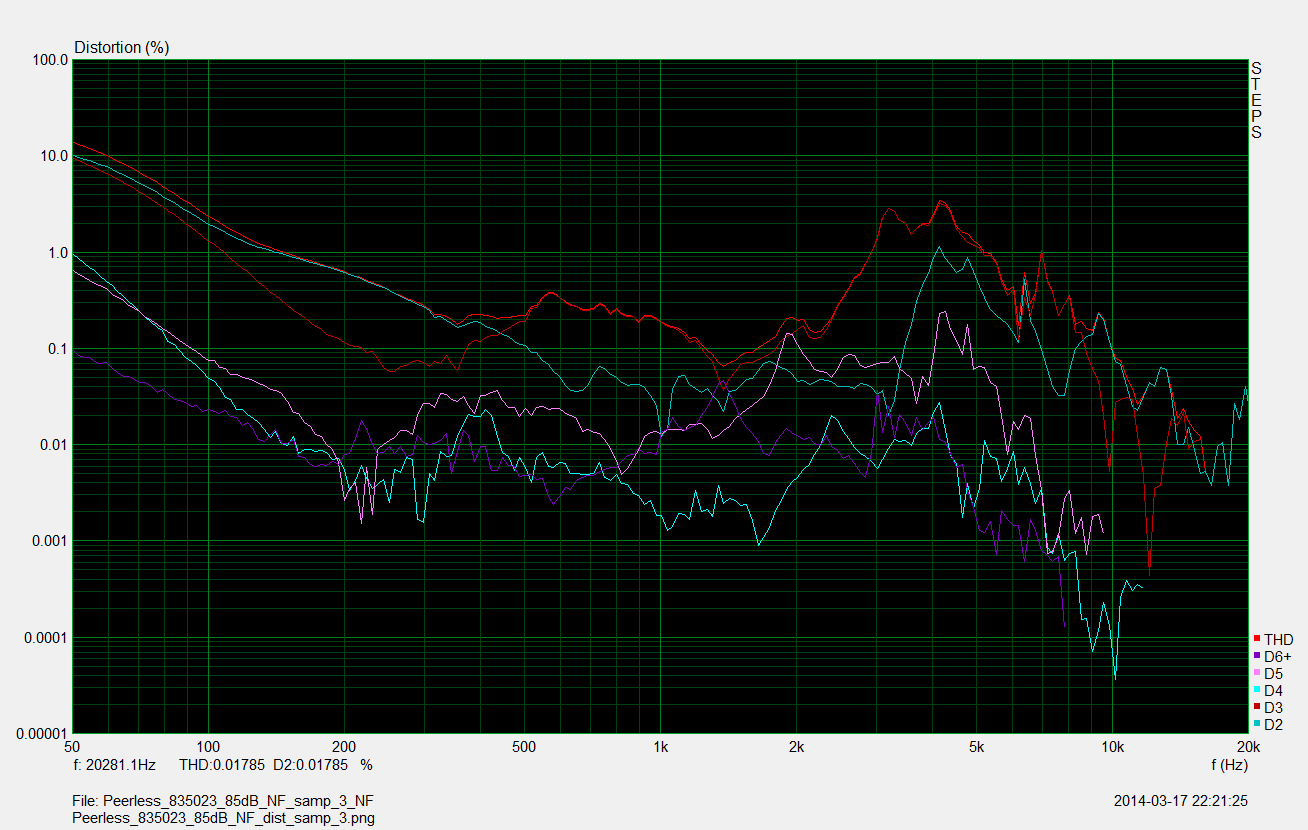

Nearfield Distortion

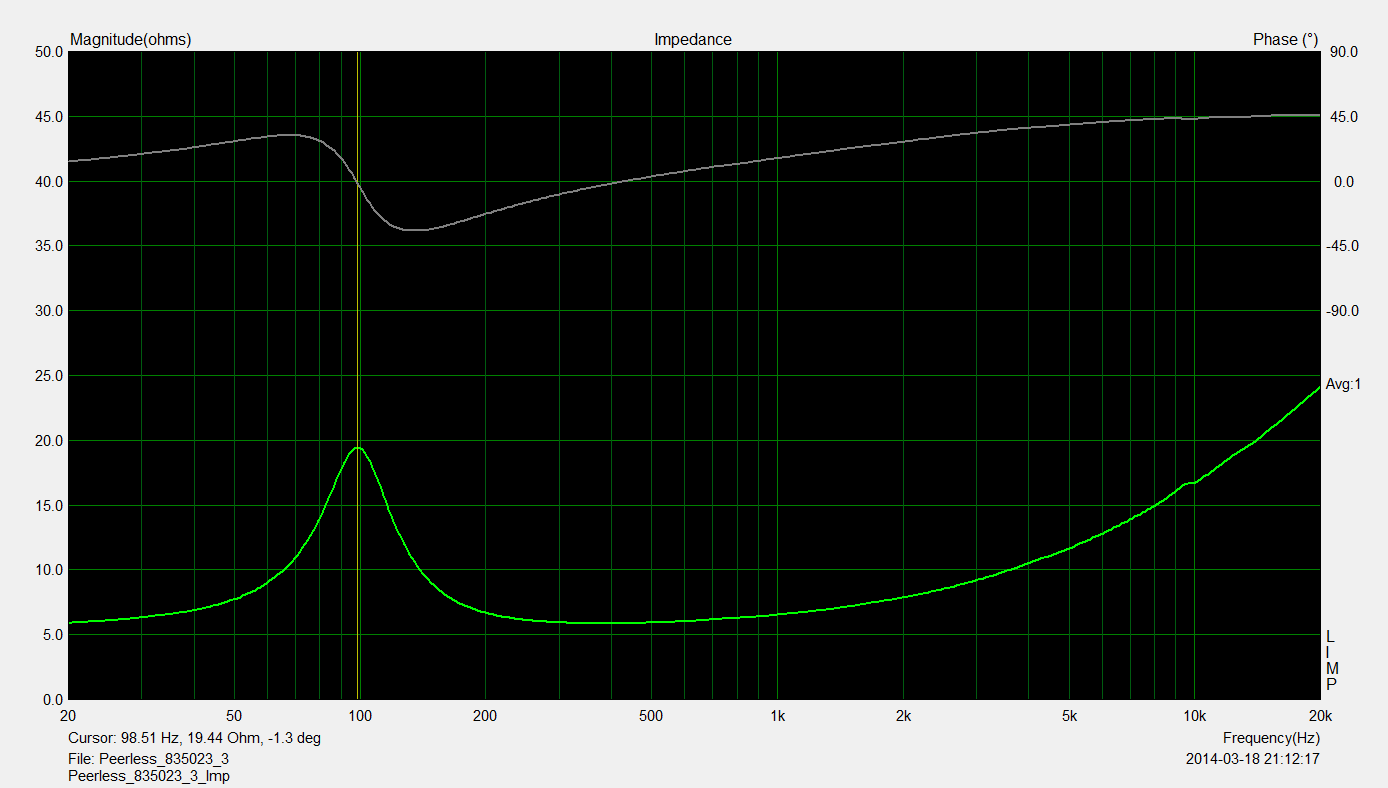

Impedance
Loudspeaker parameters:
Fs = 97.89 Hz
Re = 5.36 ohms[dc]
Le = 116.37 uH
L2 = 266.62 uH
R2 = 10.06 ohms
Qt = 0.69
Qes = 0.95
Qms = 2.49
Mms = 7.69 grams
Rms = 1.897539 kg/s
Cms = 0.000344 m/N
Vas = 1.56 liters
Sd= 56.80 cm^2
Bl = 5.169504 Tm
ETA = 0.15 %
Lp(2.83V/1m) = 85.54 dB
Added Mass Method:
Added mass = 5.60 grams
Diameter= 8.50 cm
