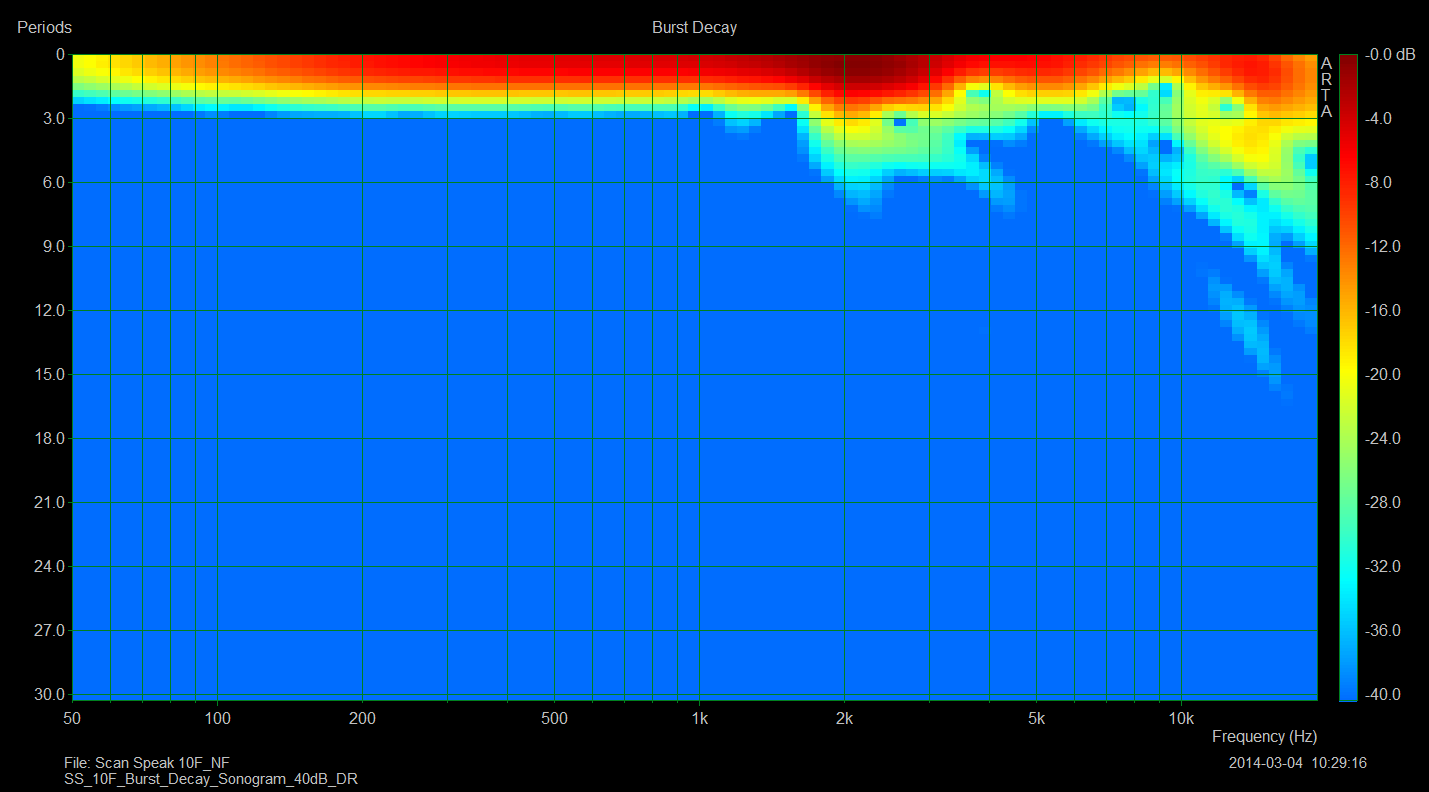

Burst Decay Sonogram, 40dB Dynamic Range

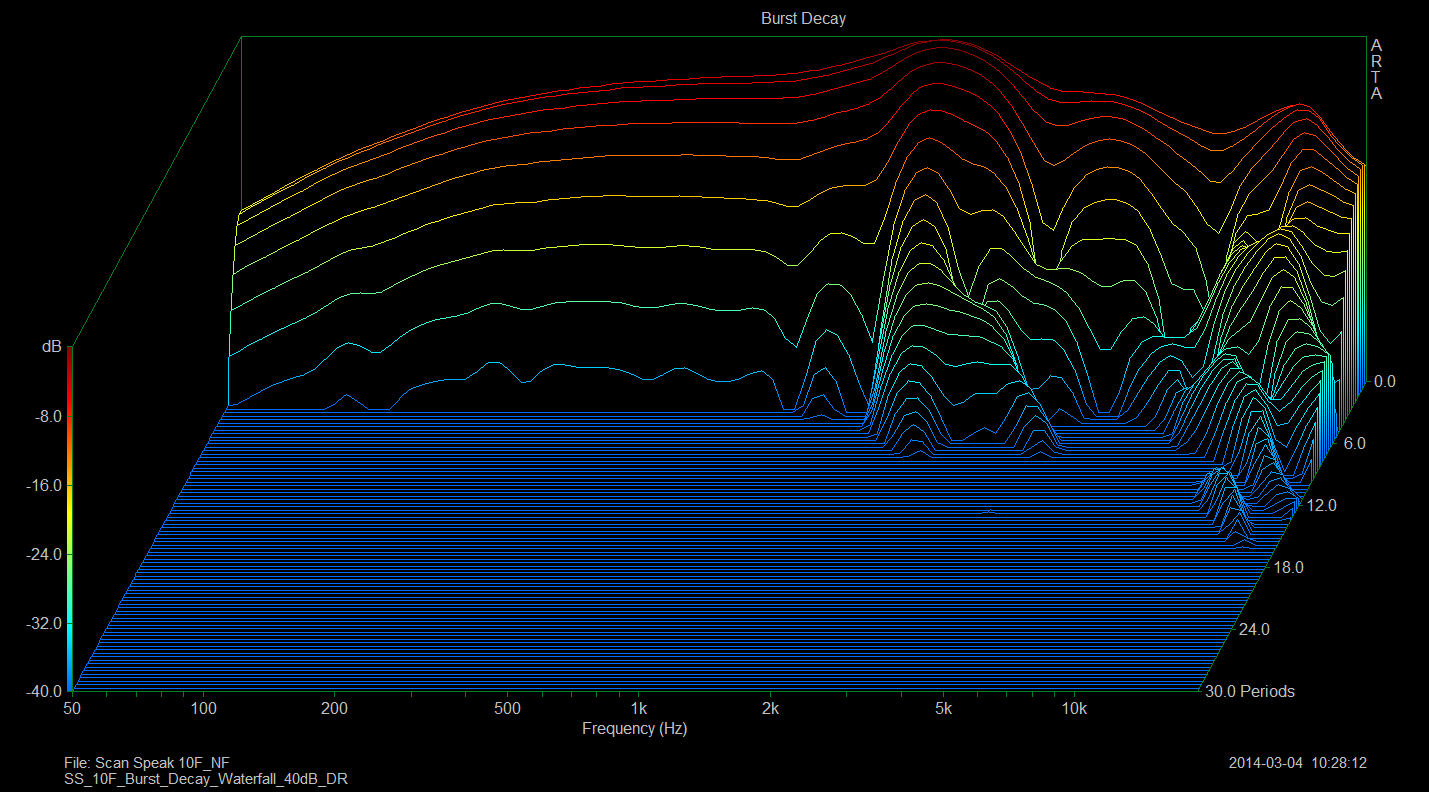

Burst Decay Waterfall, 40dB Dynamic Range

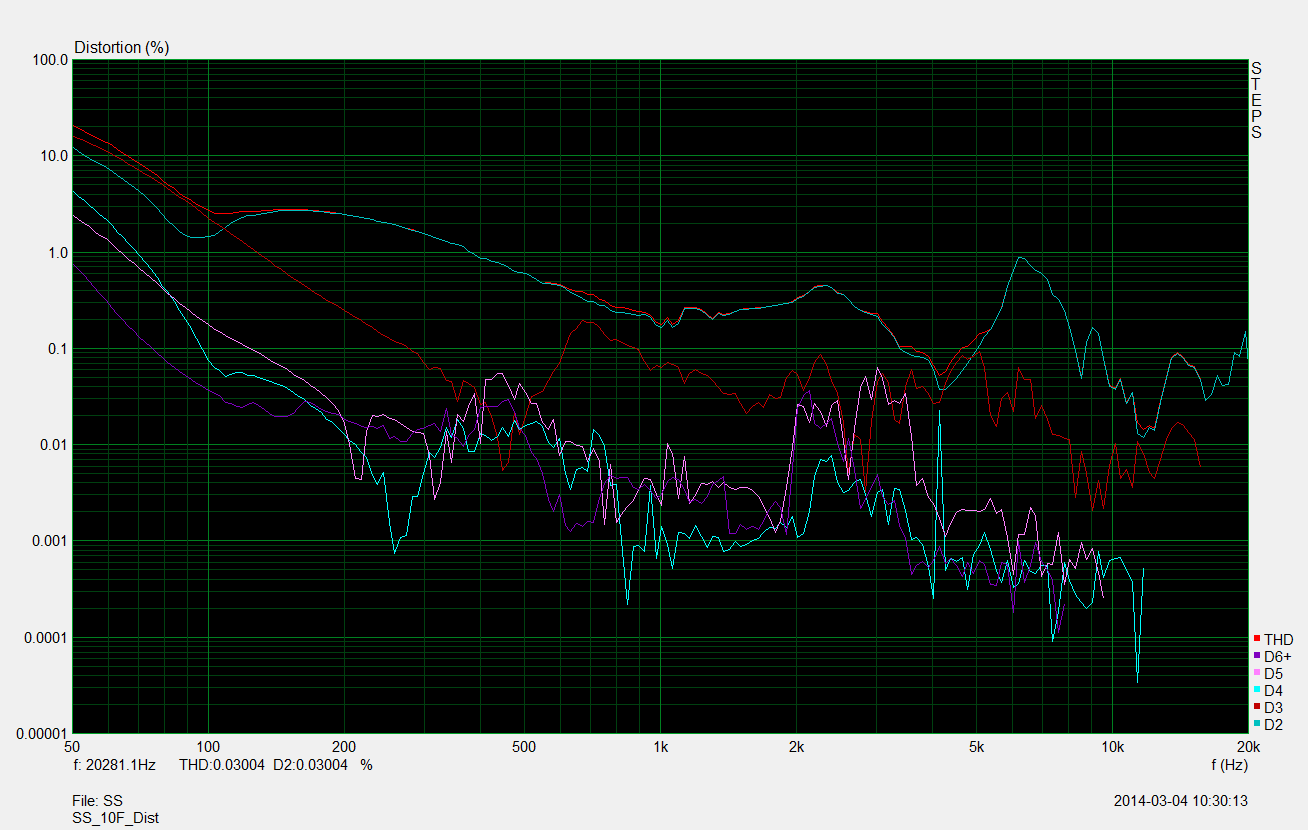

Near Field Distortion

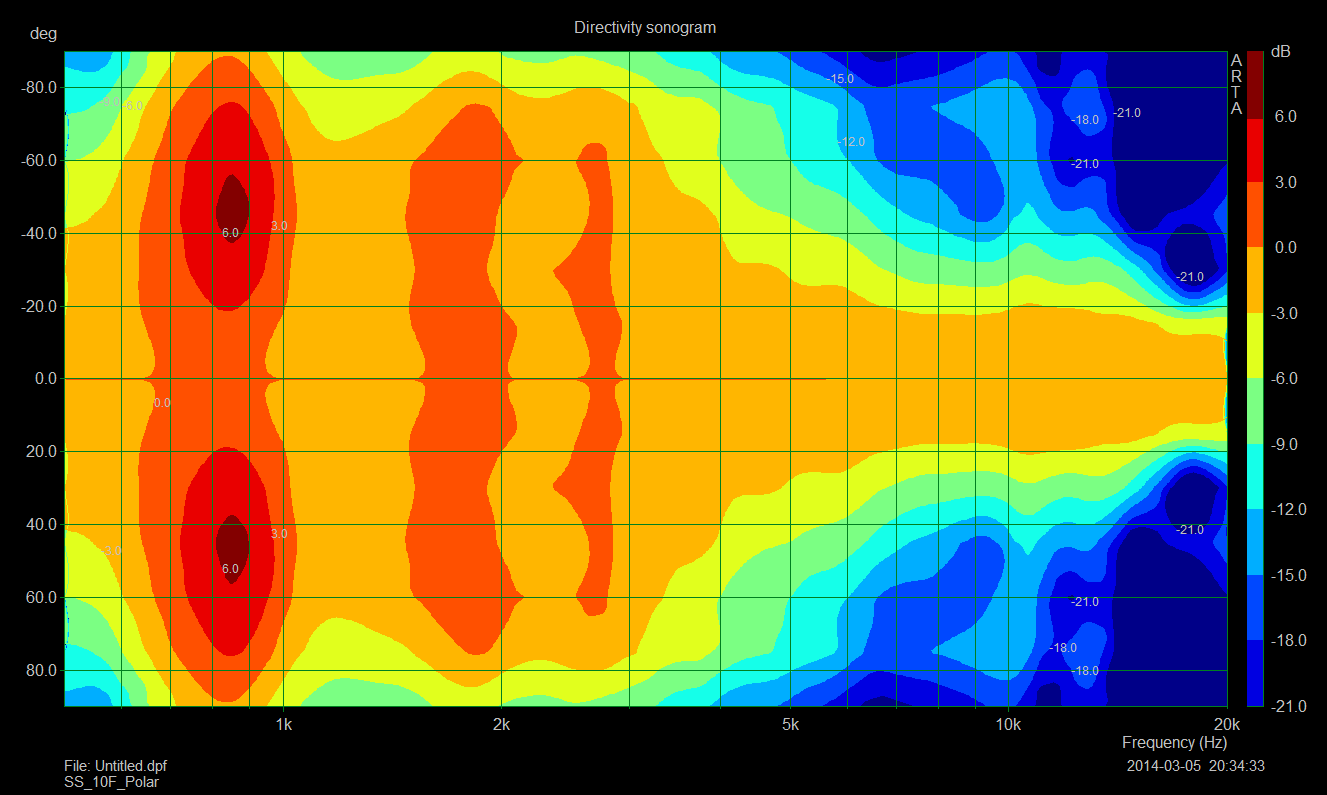

Polar Response 39.37"(1M)
Original measurement files (9)
Files retained in their original formats. Filenames identify the measurement or test condition.
- Scan Speak 10F_NF.pir1.0 MB
- SS.hsw7 KB
- SS_deg+0.Pir1.0 MB
- SS_deg+15.Pir1.0 MB
- SS_deg+30.Pir1.0 MB
- SS_deg+45.Pir1.0 MB
- SS_deg+60.Pir1.0 MB
- SS_deg+75.Pir1.0 MB
- SS_deg+90.Pir1.0 MB
